TMX |
| Chuck Size | TMX Part Number |
| 10" | 3-781-1080 |
 |
 |
| Chuck Dia | in | 10 |
| Spindle Nose | A2-8 | |
| Thru Hole | in | 3.0315 |
| Jaw Stroke | in | 0.3346 |
| Plunger Stroke | in | 0.7874 |
| Gripping Dia Max | in | 10 |
| Gripping Dia Min | in | 1.2205 |
| Max Permissible Input Force | lbf | 11244 |
| Max Gripping Force | lbf | 28088 |
| Max Speed | RPM | 4200 |
| Weight | lb | 88.2 |
| Moment of Inertia | lb*ft2 | 0.2642 |

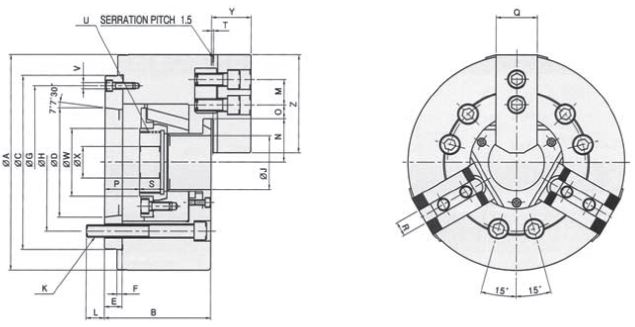

| A | in | 10 |
| B | in | 4.4488 |
| C | in | 8.6614 |
| D | in | 5.5007 |
| E | in | 0.7087 |
| F | in | 0.1969 |
| G | in | 7.4803 |
| K | 6-M16 | |
| L | in | 0.9449 |
| M | in | 1.1811 |
| N max | in | 2.1457 |
| N min | in | 1.9803 |
| O max | in | 1.2205 |
| O min | in | 0.4724 |
| P max | in | 1.0827 |
| P min | in | 0.2953 |
| H | in | 6.748 |
| J | in | 3.0315 |
| Q | in | 1.7323 |
| R | in | 0.6299 |
| S | in | 1.063 |
| T | in | 0.0787 |
| U max | M85x2 | |
| V | 3-M8 | |
| W | in | 3.7008 |
| X | in | 1.1811 |
| Y | in | 1.7717 |
| Z | in | 4.252 |
