TMX |
| Chuck Size | TMX Part Number |
| 15" | 3-761-1508 |
 |
 |
| Chuck Dia | 15 | |
| Taper | A2-8 | |
| Jaw Stroke | in | 0.7323 |
| Plunger Stroke | in | 1.3780 |
| Gripping Dia Max | in | 15.0000 |
| Gripping Dia Min | in | 2.3622 |
| Max Permissible Input Force | lbf | 16399 |
| Max Static Gripping Force | lbf | 32797 |
| Max Speed | RPM | 2100 |
| Weight | lb | 216.0 |
| Moment of Inertia | lb*ft2 | 1.4583 |

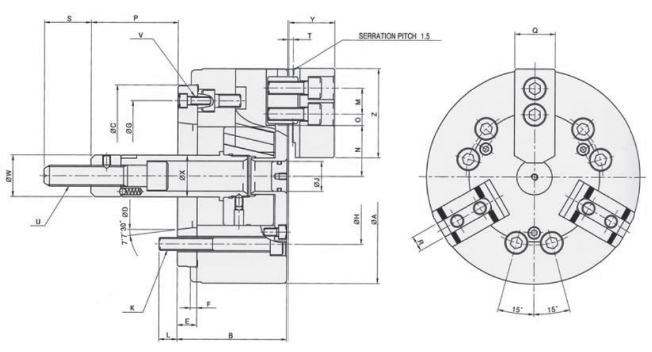

| A | in | 15.0000 |
| B | in | 4.9213 |
| C | in | 8.8583 |
| D | in | 5.5006 |
| E | in | 0.7874 |
| F | in | 0.9531 |
| G | in | 3.3750 |
| H | in | 6.7500 |
| J | in | 0.3150 |
| K | 6-M16 | |
| L | in | 0.8858 |
| O max | in | 2.1457 |
| O min | in | 0.8465 |
| P max | in | 1.3780 |
| P min | in | 0 |
| Q | in | |
| R | in | |
| S | in | 1.9685 |
| T | in | 6.8898 |
| U max | M27x3.0 | |
| N max | in | 2.9331 |
| N min | in | 2.5669 |
| V | in | 3.3465 |
| W | in | |
| X | in | 2.4803 |
| Y | in | |
| Z | in |
