TMX Self-Centering 3 and 4-jaw VTL Scroll Chucks
Heavy Duty Forged Steel Bodies


  • Fitted With Wiper Seals
  • Extended Master Jaws for Extra Rigidity
  • Center Plug Seals Out Chips and contaminants
Each Chuck Provided With:
  • 1 Set of Extra Long Hard Master Jaws
  • 1 Set of Reversible Hard Top Jaws
  • 1 Chuck Wrench

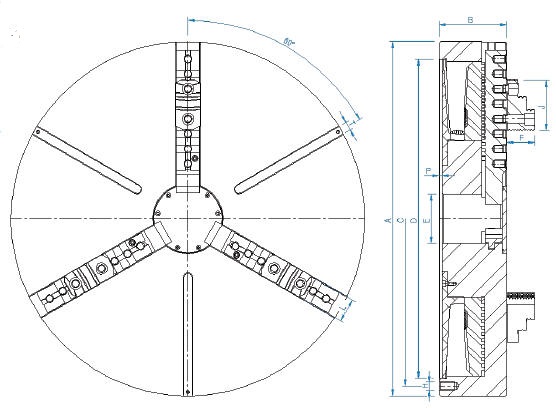

TMX 3-Jaw VTL Self-Centering Scroll Chucks
Number
Of
Jaws		 A
Dia.
(in)		 Part
Number		 Max
RPM		 B
Body
Height
 		 C
Bolt Circle
Dia.
(in)		 D
Recess
Dia.
(in)		 F
Jaw
Height
(in)		 H
Mount.
Bolt
Thread		 J
Top
Jaw
Height		 l
Guide
Way
Size		 P
Recess
Depth
(in)		 T
Slots
Qty.
And
Size		 Max
Torque
On
Chuck
Key
Da.N.M		 Grip
Force
DAN		 Weight
(lbs)		 Clamping
Range
Max.
Dia.		 Min.
Dia.
3 28 3-826-2800P 873 6.38 25.98 24.80 2.80 6xM20 5.00 2.36 .31 4xM18 70 11,700 739 27.56 7.09
32 3-826-3500P 764 6.57 29.92 28.74 2.80 6xM20 5.00 2.36 .31 4xM18 80 12,300 904 31.50 7.09
36 3-826-3600P 679 6.77 33.46 31.89 2.80 6xM22 5.00 2.36 .31 4xM18 80 11,500 1246 35.43 7.09
40 3-826-4000P 611 7.87 37.40 35.83 2.80 6xM24 5.12 2.95 .39 4xM18 140 15,500 1590 39.37 7.87
48 3-826-4800P 509 7.87 37.40 35.83 3.15 6xM24 5.12 2.95 .39 4xM22 140 15,500 2646 47.24 9.45
52 3-826-5200P
55 3-826-5500P 437 7.87 37.40 35.83 3.15 6xM24 5.12 2.95 .39 4xM22 140 15,500 4079 55.12 9.45
63 3-826-6300P 382 7.87 41.34 35.83 3.15 6xM30 5.12 2.95 .39 4xM22 140 15,500 6173 62.99 9.45
71 3-826-7100P 340 7.87 41.34 35.83 3.15 6xM30 5.12 2.95 .39 4xM22 140 15,500 9480 70.87 9.45
TMX 4-Jaw VTL Self-Centering Scroll Chucks
Number
Of
Jaws		 A
Dia.
(in)		 Part
Number		 Max
RPM		 B
Body
Height
 		 C
Bolt Circle
Dia.
(in)		 D
Recess
Dia.
(in)		 F
Jaw
Height
(in)		 H
Mount.
Bolt
Thread		 J
Top
Jaw
Height		 l
Guide
Way
Size		 P
Recess
Depth
(in)		 T
Slots
Qty.
And
Size		 Max
Torque
On
Chuck
Key
Da.N.M		 Grip
Force
DAN		 Weight
(lbs)		 Clamping
Range
Max.
Dia.		 Min.
Dia.
4 28 3-842-2800P 873 6.38 25.98 24.80 2.80 6xM20 5.00 2.36 .31 4xM18 70 11,700 739 27.56 7.09
32 3-826-3500P 764 6.57 29.92 28.74 2.80 6xM20 5.00 2.36 .31 4xM18 80 12,300 904 31.50 7.09
36 3-842-3600P 679 6.77 33.46 31.89 2.80 6xM22 5.00 2.36 .31 4xM18 80 11,500 1246 35.43 7.09
40 3-842-4000P 611 7.87 37.40 35.83 2.80 6xM24 5.12 2.95 .39 4xM18 140 15,500 1590 39.37 7.87
48 3-842-4800P 509 7.87 37.40 35.83 3.15 6xM24 5.12 2.95 .39 4xM22 140 15,500 2646 47.24 9.45
52 3-842-5200P
55 3-842-5500P 437 7.87 37.40 35.83 3.15 6xM24 5.12 2.95 .39 4xM22 140 15,500 4079 55.12 9.45
63 3-842-6300P 382 7.87 41.34 35.83 3.15 6xM30 5.12 2.95 .39 4xM22 140 15,500 6173 62.99 9.45
71 3-842-7100P 340 7.87 41.34 35.83 3.15 6xM30 5.12 2.95 .39 4xM22 140 15,500 9480 70.87 9.45
