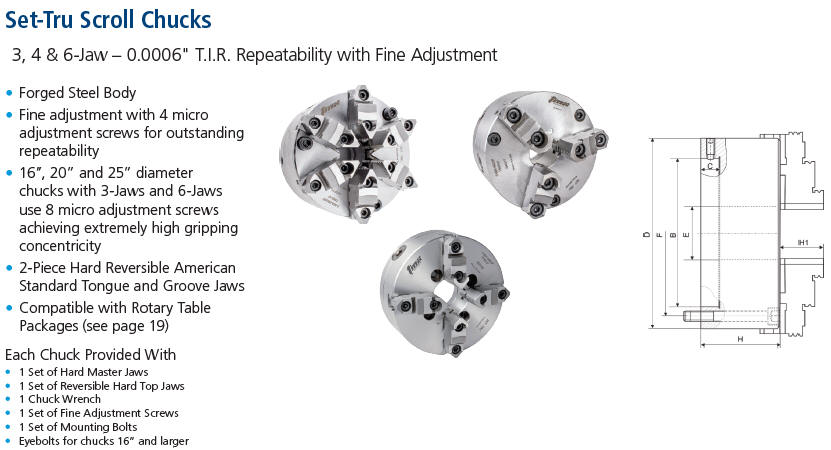

TMX Forged Steel Body Set-Tru chucks 3-Jaw, 4-Jaw, 6-jaw

TMX Manual forged steel body 3-jaw, 4-jaw And 6-Jaw
Set-Tru Chucks With 2 Piece Jaws
Fine Truing Adjustment

Number of Jaws	Diameter D (in)	Item Number	Hole Diameter E (in)	Max. RPM	Gripping Force (daN)	Weight (lbs)	Recess Diameter B (in)	Recess Depth C (in)	Bolt Circle F (in)	Body Height H (in)	Jaw Height H1 (in)
3-Jaws	5	3-866-0500P	1.378	5500	2400	15.1	2.165	.591	4.252	2.835	1.575
	6	3-866-0600P	1.654	4600	3100	29.3	3.386	.709	5.512	3.484	1.732
	8	3-866-0800P	2.165	4000	3700	49.6	4.331	.787	6.929	3.898	1.772
	10	3-866-1000P	2.992	3500	4600	80.9	5.709	.787	8.819	4.291	2.051
	12	3-866-1200P	4.055	2800	5500	137.8	7.087	.787	11.260	4.665	2.244
	16	3-866-1600P	5.354	2000	6500	222.2	11.781	1.181	6.752	5.118	2.638
	20	3-866-2000P	7.480	1300	7200	395.6	16.030	.866	9.252	6.299	3.150
	25	3-866-2500P	9.921	1000	8000	715.6	16.030	1.181	13.000	6.890	3.425
4-Jaws	6	3-847-0600P	1.654	4600	3100	29.3	3.386	1.181	5.512	3.484	1.732
	8	3-847-0800P	2.165	4000	3700	49.6	4.331	.709	6.929	3.898	1.772
	10	3-847-1000P	2.992	3500	4600	80.9	5.709	.787	8.819	4.291	2.051
	12	3-847-1200P	4.055	2800	5500	137.8	7.087	.787	11.260	4.665	2.244
	16	3-847-1600P	5.354	2000	6500	222.2	11.781	.866	6.752	5.118	2.638
6-Jaws	5	3-868-0500P	1.378	3800	2400	15.1	2.165	.591	4.252	2.835	1.575
	6	3-868-0600P	1.654	3200	3100	29.3	3.386	.709	5.512	3.484	1.732
	8	3-868-0800P	2.165	2800	3700	49.6	4.331	.787	6.929	3.898	1.772
	10	3-868-1000P	2.992	2400	4600	80.9	5.709	.787	8.819	4.291	2.051
	12	3-868-1200	4.055	1900	5500	137.8	7.087	.787	11.260	4.665	2.244
	16	3-868-1600P	5.354	1500	6500	222.2	11.781	.866	6.752	5.118	2.638
	20	3-868-2000P	7.480	900	7200	395.6	16.030	1.181	9.252	6.299	3.150
	25	3-868-2500P	9.921	700	8000	715.6	16.030	1.181	13.000	6.890	3.425
