TMX |
|
| Chuck Size | TMX Part Number |
| 8" | 3-831-0800P |
 |
.jpg) |
| Chuck Type | 2-Jaw Scroll | |
| Chuck Size | in | 8 |
| Material | Forged Steel | |
| Jaw Type | 2 Piece | |
| Mount Type | Back | |
| Gripping Force (daN) | daN | 2900 |
| Gripping Force (lbf) | lbf | 6400 |
| Torque on Wrench | lbf*ft | 397 |
| Maximum Speed | RPM | 4000 |
| Weight | lb | 38.6 |

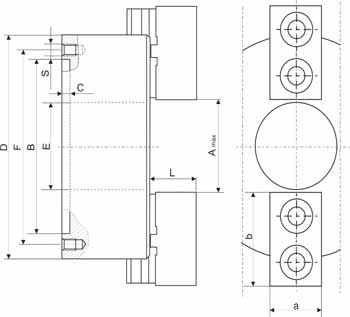

| Chuck Diameter (D) | in | 8 |
| Chuck Diameter (D) mm | mm | 200 |
| B | in | 6.2992 |
| C | in | 0.1575 |
| E | in | 2.1654 |
| F | in | 6.9291 |
| S | 6xM10 | |
| H | in | 2.9528 |
| L | in | 1.7717 |
| A max | in | 3.2677 |
| Width of Jaw (a) | in | 1.5748 |
| Length of Jaw (b) | in | 3.5433 |
