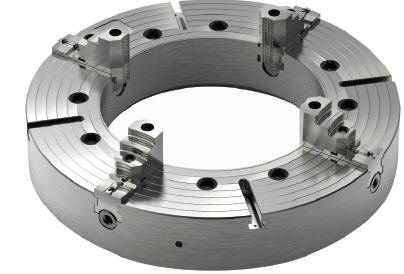

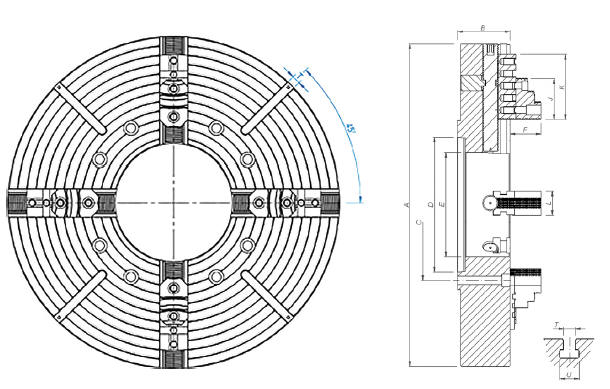

TMX 4-Jaw Independent Extra Heavy Duty
Forged Steel Body Oil Country Chucks
Made In Poland
Type A Type Mounts




Chuck
Dia.in
Inches

 Spindle Mount Max
Hole
Dia E		 Part
Number		 Max
RPM		 Wt.
lbs		 D
Dia.
Recess		 C
Stud
Circl
Dia.		 B
Body
Height		 F
Jaw
Height		 J
Top
Jaw
Length		 K
Master
Jaw
Length		 L
guide
way		 T
T-Slot
Width		 M
Screw
Dia.		 Max
Torque
on Key
DA.N.M		 Grip
Force
DAN
16 A2-11 6.5 3-859-1611P 1200 302 7.75 9.25 5.71 2.98 5.38 5.20 2.36 - 40 36 3140
20 A2-11 4.56 3-859-2011P 1000 450 7.75 9.25 5.71 2.98 5.38 6.69 2.36 - 40 36 3140
20 A2-15 11.06 3-859-2015P 1000 414 11.25 13 5.71 2.98 5.38 6.69 2.95 .87 50 36 3140
24 A2-11 7.56 3-859-2411P 850 700 7.25 9.25 6.1 2.98 5.34 8.19 2.95 .87 50 41 3630
24 A2-15 11.06 3-859-2415P 850 684 11.25 13 6.1 3.57 5.34 8.19 2.95 .87 50 41 3630
24 A2-20 12.52 3-859-2420P 850 662 16.25 18.25 6.1 3.57 5.34 8.19 2.95 .87 50 41 3630
28 A2-15 11.06 3-859-2815P 873 827 11.25 13 6.1 3.57 5.00 7.99 2.95 .87 50 60 3750
28 A2-20 12.5 3-859-2820P 273 827 16.25 18.25 6.1 3.62 5 7.99 2.95 .87 50 60 3750
32 A2-15 10.5 3-859-3215P 764 1191 11.25 13 6.5 3.62 5 7.99 2.95 .87 50 70 4750
32 A2-20 12.55 3-859-3220P 764 1191 16.25 18.25 6.5 3.62 5 7.99 2.95 .87 50 70 4750
32 A2-20 14.75 3-859-3222P 764 1191 16.25 18.25 6.5 3.62 5 7.99 2.95 .87 50 70 4750
36 A2-15 11.06 3-859-3615P 679 1543 11.25 13 6.5 3.62 5 7.99 2.95 .87 50 70 4750
36 A2-20 16.06 3-859-3620P 679 1543 16.25 18.25 6.5 3.62 5 7.99 2.95 .87 50 70 4750
40 A2-20 16.06 3-859-4020P 611 1808 16.25 18.25 6.5 3.62 5 7.99 2.95 1.1 50 70 4750
40 A2-15 10.5 3-859-4015P 611 1808 11.25 13 6.5 3.62 5 7.99 2.95 1.1 50 70 4750
40 A2-28 20.87 3-859-4028P 611 1808 23 25.5 6.5 3.62 5 7.99 2.95 1.1 50 70 4750
All dimensions in inches (in) otherwise specified.  Weights are approximate
