TMX 4-Jaw Independent Forged Steel Body Chucks |
|
|
|

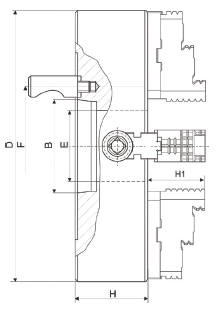

D Diameter (in) |
Spindle Mount |
Item Number |
E Hole Dia. (in) |
Max. RPM |
Weight (lbs) |
B Recess Diameter (in) |
F Cam-lock Dia. (in) |
H Body Height (in) |
H1 Jaw Height (in) |
Camlock Studs | ||
| Qty. | Dia. | Thread | ||||||||||
| 8 | D1-3 | 3-857-0833P | 1.969 | 3060 | 37.8 | 2.125 | 2.780 | 2.854 | 1.775 | 3 | 9/16 | M10x1 |
| 8 | D1-4 | 3-857-0834P | 1.969 | 3060 | 37.8 | 2.501 | 3.252 | 2.854 | 1.772 | 3 | 5/8 | M10x1 |
| 10 | D1-6 | 3-857-1036P | 2.559 | 2450 | 57.8 | 4.188 | 5.252 | 3.091 | 2.051 | 6 | 7/8 | M16x1.5 |
| 12 | D1-6 | 3-857-1236P | 3.150 | 1940 | 106.7 | 4.188 | 5.252 | 3.425 | 2.244 | 6 | 7/8 | M16x1.5 |
| 12 | D1-8 | 3-857-1238P | 3.150 | 1940 | 106.7 | 5.501 | 6.748 | 3.425 | 2.244 | 6 | 1 | M20x1.5 |
| 16 | D1-6 | 3-857-1636P | 3.937 | 1530 | 188.9 | 4.188 | 5.252 | 3.622 | 2.638 | 6 | 7/8 | M16x1.5 |
| 16 | D1-8 | 3-857-1638P | 3.937 | 1530 | 188.9 | 5.501 | 6.748 | 3.622 | 2.638 | 6 | 1 | M20x1.5 |
| 16 | D1-11 | 3-857-1639P | 3.937 | 1530 | 188.9 | 7.751 | 9.252 | 3.622 | 2.638 | 6 | 1-3/16 | M22x1.5 |
| 20 | D1-8 | 3-857-2038P | 4.921 | 1220 | 333.3 | 5.501 | 6.748 | 4.213 | 3.150 | 6 | 1 | M20x1.5 |
| 20 | D1-11 | 3-857-2039P | 4.921 | 1220 | 333.3 | 7.751 | 9.252 | 4.213 | 3.150 | 6 | 1-3/16 | M22x1.5 |
| 25 | D1-8 | 3-857-2538P | 6.299 | 970 | 633.3 | 5.501 | 6.748 | 5.000 | 3.425 | 6 | 1 | M20x1.5 |
| 25 | D1-11 | 3-857-2539P | 6.299 | 970 | 633.3 | 7.751 | 9.252 | 5.000 | 3.425 | 6 | 1-3/16 | M22x1.5 |
