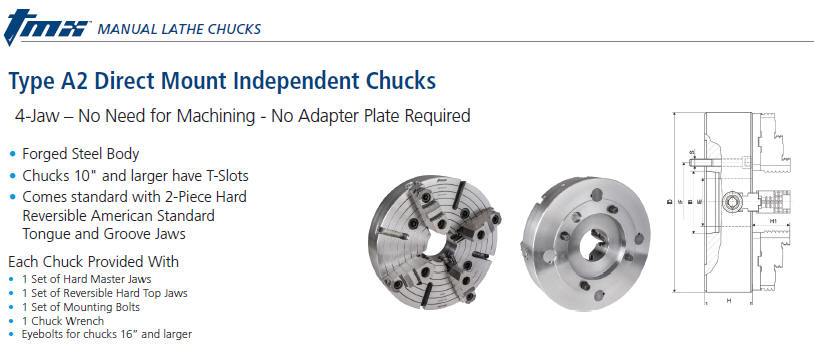

TMX 4-Jaw Independent Forged Steel Body Chucks |
|
D Diameter |
Spindle Mount |
Item Number |
E Hole Dia. (in) |
Max. RPM |
Weight (lbs) |
B Recess Diameter (in) |
F Bolt Circle Dia. (in) |
H Body Height (in) |
H1 Jaw Height (in) |
S Hole Thread Size |
| 8 | A2-6 | 3-856-0816P | 1.968 | 3060 | 37-8 | 4.188 | 5.252 | 2.854 | 1.770 | 4xM12 |
| 10 | A2-6 | 3-856-1016P | 2.559 | 2450 | 57.8 | 4.188 | 5.252 | 3.051 | 2.051 | 4xM12 |
| 10 | A2-8 | 3-856-1018P | 2.559 | 2450 | 57.8 | 5.500 | 6.748 | 3.051 | 2.051 | 4xM16 |
| 12 | A2-6 | 3-856-1216P | 3.149 | 1940 | 106.7 | 4.188 | 5.252 | 3.425 | 2.244 | 8xM12 |
| 12 | A2-8 | 3-856-1218P | 3.149 | 1940 | 106.7 | 5.500 | 6.748 | 3.425 | 2.244 | 4xM16 |
| 16 | A2-6 | 3-856-1616P | 3.937 | 1530 | 188.9 | 4.188 | 5.252 | 3.622 | 2.637 | 8xM12 |
| 16 | A2-8 | 3-856-1618P | 3.937 | 1530 | 188.9 | 5.500 | 6.748 | 3.622 | 2.637 | 4xM16 |
| 16 | A2-11 | 3-856-1619P | 3.937 | 1530 | 188.9 | 7.750 | 9.252 | 3.622 | 2.637 | 4xM20 |
| 20 | A2-8 | 3-856-20P18 | 4.921 | 1220 | 333.3 | 5.500 | 6.748 | 4.212 | 3.149 | 8xM16 |
| 20 | A2-11 | 3-856-2019P | 4.921 | 1220 | 333.3 | 7.750 | 9.252 | 4.212 | 3.149 | 8xM20 |
| 20 | A2-15 | 3-856-2519P | 4.921 | 1220 | 333.3 | 11.251 | 13.000 | 4.212 | 3.149 | 4xM24 |
| 25 | A2-11 | 3-856-2519P | 6.299 | 970 | 633.3 | 7.750 | 9.252 | 5.000 | 3.425 | 8xM20 |
| 25 | A2-15 | 3-856-2520P | 6.299 | 970 | 633.3 | 11.251 | 13 | 5.000 | 3.425 | 4xM24 |
| 28 | A2-11 | 3-856-2811P | 1.724 | 873 | 715 | 7.751 | 9.252 | 4.724 | 2.734 | 12XM20 |
| 32 | A2-11 | 3-856-3211P | 5.314 | 764 | 990 | 7.751 | 9.252 | 4.921 | 2.834 | 12XM20 |
| 32 | A2-15 | 3-856-3215P | 5.314 | 764 | 990 | 11.252 | 13.000 | 4.921 | 2.834 | 12XM24 |
| 36 | A2-11 | 3-856-3611P | 5.511 | 679 | 1353 | 7.751 | 9.252 | 5.315 | 2.834 | 12XM20 |
| 36 | A2-15 | 3-856-3615P | 5.511 | 679 | 1353 | 11.252 | 13.000 | 5.315 | 2.834 | 12XM20 |
| 40 | A2-11 | 3-856-4011P | 5.905 | 611 | 1738 | 7.751 | 9.252 | 5.511 | 3.149 | 12XM24 |
| 40 | A2-20 | 3-856-4015P | 5.905 | 611 | 1738 | 11.252 | 13.000 | 5.511 | 3.149 | 12XM24 |
| 40 | A2-11 | 3-856-4020P | 5.905 | 611 | 1738 | 16.252 | 18.252 | 5.511 | 3.149 | 12XM20 |
| 48 | A2-15 | 3-856-4811P | 6.299 | 509 | 2299 | 7.751 | 9.252 | 5.708 | 3.149 | 12XM24 |
| 48 | A2-20 | 3-856-4815P | 6.299 | 509 | 2599 | 11.252 | 13.000 | 5.708 | 3.149 | 12XM20 |
| 48 | A2-11 | 3-856-4820P | 6.299 | 509 | 2299 | 16.252 | 18.252 | 5.708 | 3.149 | 12XM20 |
| 55 | A2-15 | 3-856-5511P | 6.299 | 437 | 3531 | 7.751 | 9.252 | 5.905 | 3.149 | 12XM20 |
| 55 | A2-20 | 3-856-5515P | 6.299 | 437 | 3531 | 11.252 | 13.000 | 5.905 | 3.149 | 12XM24 |
| 55 | A2-15 | 3-856-5520P | 6.299 | 437 | 3531 | 16.252 | 18.252 | 5.905 | 3.149 | 12XM24 |
| 60 | A2-15 | 3-856-6015P | 6.299 | 407 | 4312 | 11.252 | 13.000 | 6.496 | 3.149 | 12XM24 |
| 60 | A2-20 | 3-856-6020P | 6.299 | 407 | 4312 | 16.252 | 18.252 | 6.496 | 3.149 | 12XM24 |
