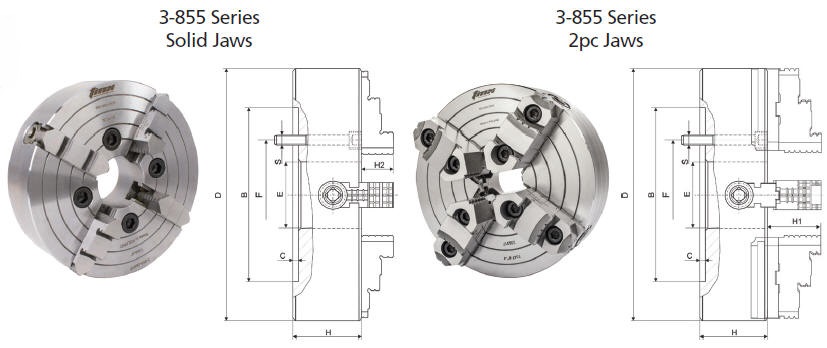

TMX 4-Jaw Independent Forged Steel Body Chucks - Plain Back |
|
Chuck Diameter |
Jaw Type |
Item Number |
E Hole Dia. (in) |
Max RPM |
Weight (lbs) |
B Recess Dia. (in) |
C Recess Depth (in) |
F Bolt Circle (in) |
H Body Height (in) |
Jaw Height H1/H2 (in) |
S Hole Thread Size |
| 4 | Solid | 3-855-0401P | .984 | 6100 | 5.6 | 3.1252 | .0984 | 2.126 | 1.574 | .67 | 4xM8 |
| 5 | Solid | 3-855-0501P | 1.023 | 4900 | 10.6 | 2.748 | .0984 | 2.126 | 1.692 | .79 | 4xM8 |
| 6 | Solid | 3-855-0601P | 1.653 | 382 | 11.1 | 3.2500 | .0984 | 2.750 | 1.692 | .79 | 4xM10 |
| 8 | 2 pc. | 3-855-0800P | 1.968 | 0 | 367.8 | 4.3307 | .1969 | 3.252 | 2.854 | 1.826 | 4xM10 |
| 10 | 2 pc. | 3-855-1000P | 2.559 | 2450 | 57.8 | 5.9055 | .2756 | 4.126 | 3.051 | 2.378 | 4xM12 |
| 12 | 2 pc. | 3-855-1200P | 3.149 | 1940 | 106.7 | 6.8898 | .2756 | 5.252 | 3.425 | 2.397 | 4xM16 |
| 16 | 2 pc. | 3-855-1600P | 3.9367 | 1530 | 188.9 | 7.874 | .3937 | 6.748 | 3.622 | 2.846 | 4xM16 |
| 20 | 2 pc. | 3-855-2000P | 4.921 | 1220 | 333.3 | 10.6299 | .4724 | 9.252 | 4.212 | 3.850 | 4xM20 |
| 25 | 2 pc. | 3-855-2500P | 6.299 | 970 | 633.3 | 10.629 | .4724 | 9.252 | 5.000 | 3.850 | 4xM20 |
| 32 | 2 pc. | 3-855-3200P | 5.315 | 764 | 990 | 9.8425 | .1968 | 8.6614 | 4.921 | 3.307 | 8XM24 |
| 36 | 2 pc. | 3-855-3600P | 5.511 | 679 | 1350 | 9.8425 | .1968 | 8.6614 | 5.315 | 3.307 | 8XM24 |
| 40 | 2 pc. | 3-855-4000P | 5.905 | 611 | 1740 | 11.811 | .2756 | 9.8425 | 5.511 | 3.582 | 8XM24 |
| 48 | 2 pc. | 3-855-4800P | 6.299 | 509 | 2300 | 11.811 | .2756 | 9.8425 | 5.708 | 3.582 | 8XM24 |
| 55 | 2 pc. | 3-855-5500P | 6.299 | 437 | 3530 | 11.811 | .2756 | 9.8425 | 5.905 | 3.582 | 8XM24 |
| 60 | 2 pc. | 3-855-6000P | 6.299 | 407 | 4320 | 11.811 | .2756 | 9.8425 | 6.496 | 3.582 | 8XM30 |
